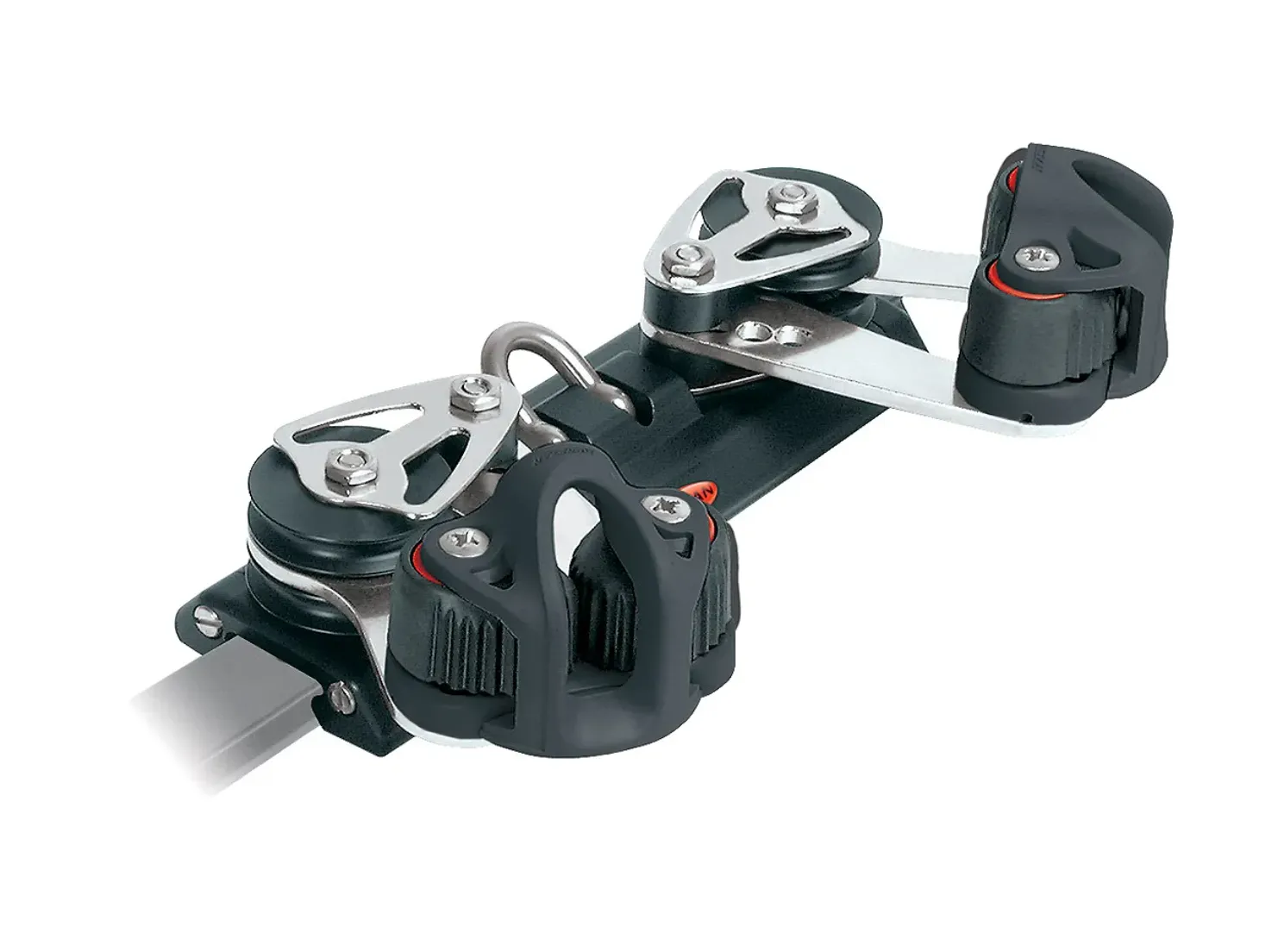

Mainsheet Traveller Car Featuring two control sheaves to allow for a 3:1 control system.
FEATURES
Low profile.
Lightweight alloy car bodies
APPLICATIONS
RC12223 is the longer of the Mainsheet Traveller Cars available in the Series 22 range. Ideally suited for use on Monohulls under 10m/33ft in length. The angle of the C-Cleats on the car is adjustable thanks to a series of holes in the cleat plate, allowing sailors to optimize the system for their cockpit and preferred trimming location. Can be used with Stand-Up Spring Kit RF324-1, which suits both Series 60 and Series 75 Core Blocks™.
Ideally paired with RC12285 control ends and RC1220 track.
If cleats are not required, use RC12213.
Can be used on curved tracks with a Minimum Horizontal "A" Bend of 9000 mm or a Minimum Horizontal "B" Bend Radius of 13000 mm. Please see further information on curving tracks here
MATERIALS
Alloy car bodies. Torlon® ball bearings in cars. Acetal control sheaves. Grade 316 stainless steel fixtures. Ball bearing upgrade sheave available seperately
SPECIFICATIONS
| B.L. (kg) | 2180 |
|---|---|
| M.W.L. (kg) | 880 |
| Weight (g) | 930 |
| Track Profile | Ball Bearing |
| Length (mm) | 180 |
| Qty. Balls | 110 |
| Width (mm) | 58 |
